EXTENDO 944X
EXTENDO 944X Featuring several next gen optimizations, the Extendo 944X telehandler is powered by a standard
TRAVERSE T1056X
Featuring several next gen optimizations, the Extendo 944X telehandler is powered by a standard 74-horsepower engine and features tried-and-true Pettibone hydraulics
PRODUCT QUICK SPECS
- Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.aliqua.
- Lorem ipsum dolor sit amet, consectetur.
- Lorem ipsum dolor sit amet, consectetur.
- Lorem ipsum dolor sit amet, consectetur.
- Lorem ipsum dolor sit amet, consectetur.
- Lorem ipsum dolor sit amet, consectetur.
Features
![Line Side Right]()
Specifications
Equipment Attatchments
Gallery
Downloads
X-Command® Telematics
A standard feature for 2 years on the Cary-Lift, X-Command provides access to the real-time status of your Pettibone machine:
- Remotely monitor equipment location and data: Engine hours, fuel usage, DEF level, battery voltage and much more.
- Identify minor mechanical issues before they become serious.
- Minimize downtime through remote diagnosis.
- Get reports and notifications via web browser or mobile app.
- Increase ROI by ensuring maintenance is up-to-date, and by eliminating certain field service calls.
- Use current, accurate machine info to plan ahead on fleet maintenance.

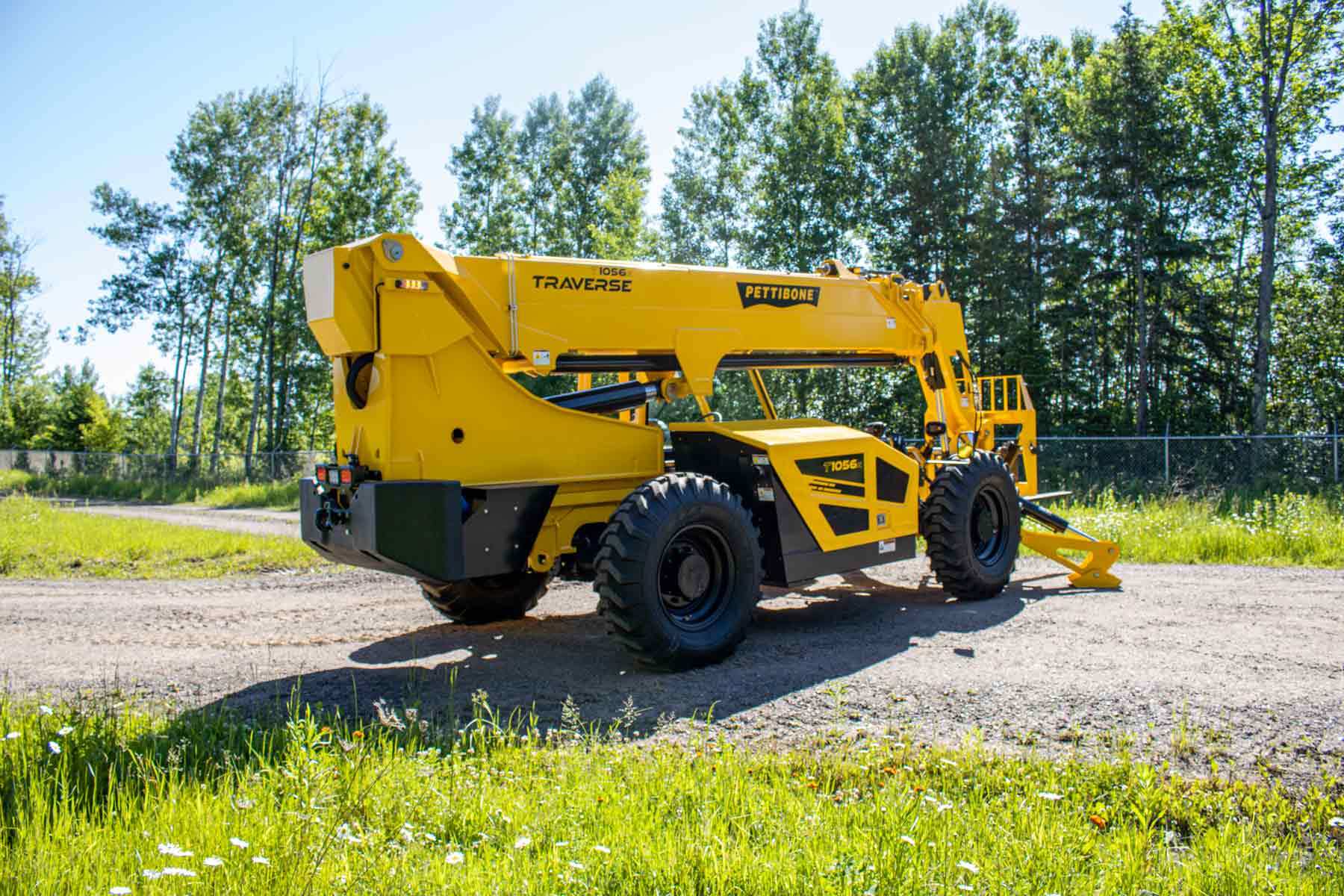

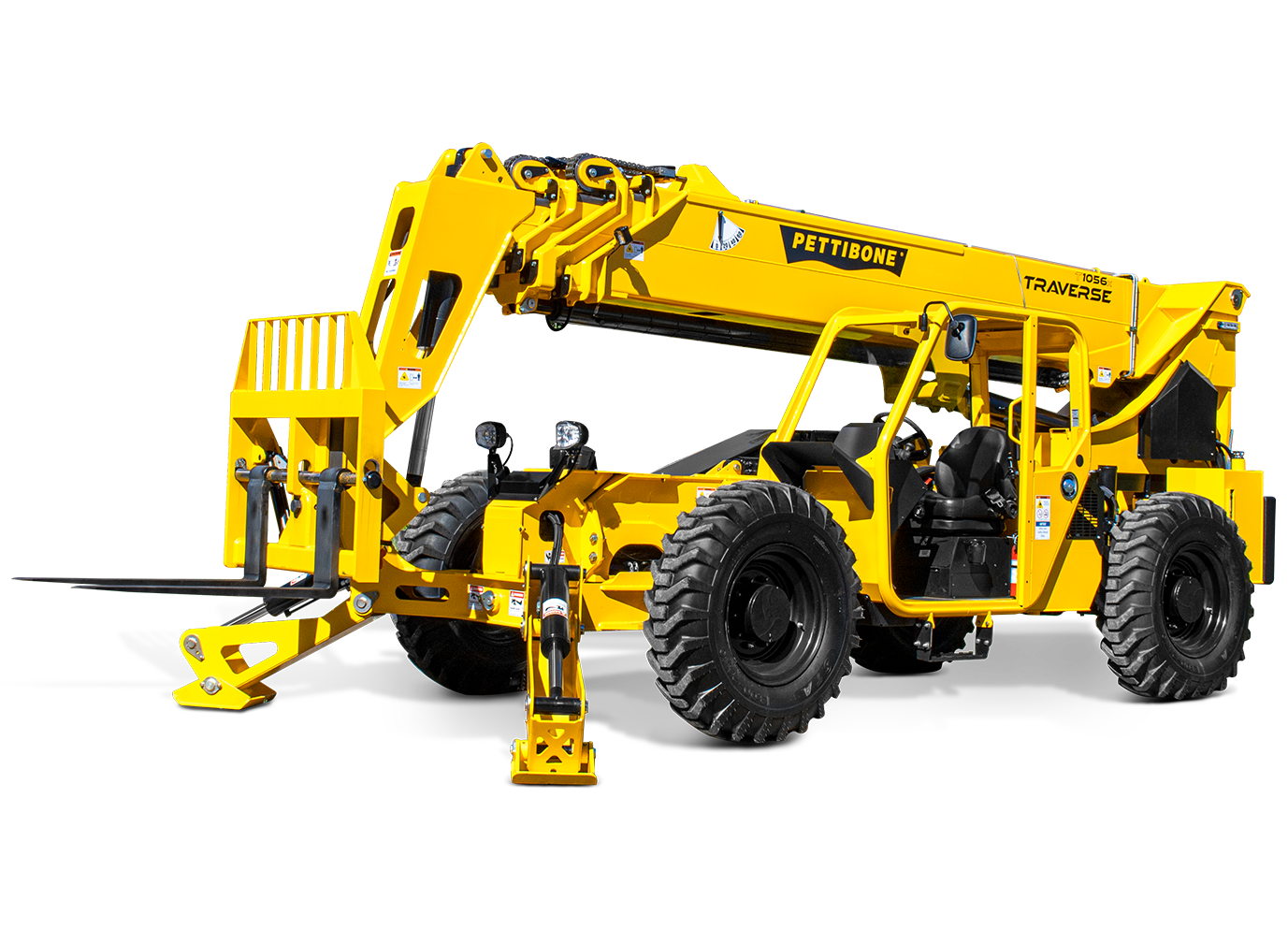

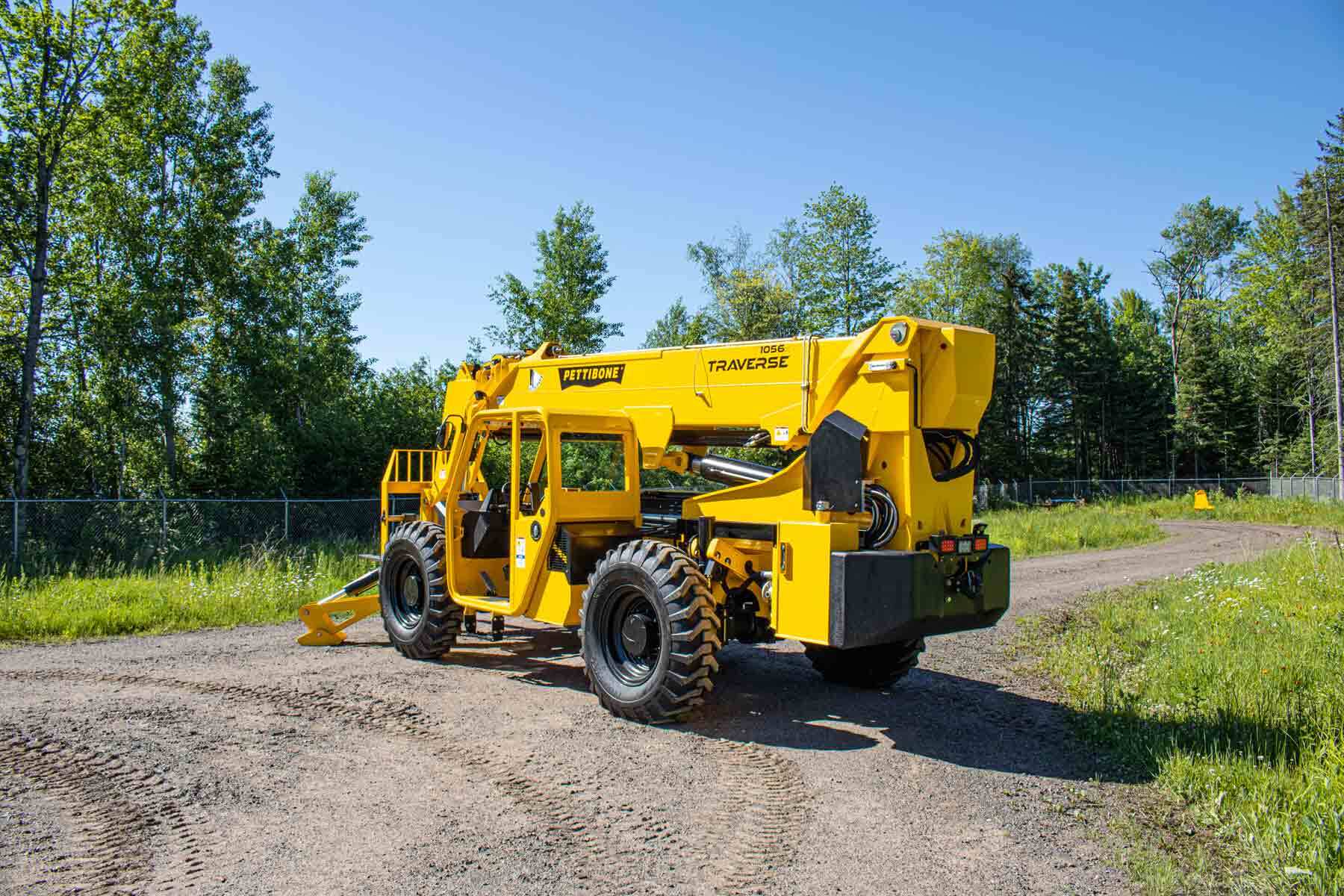

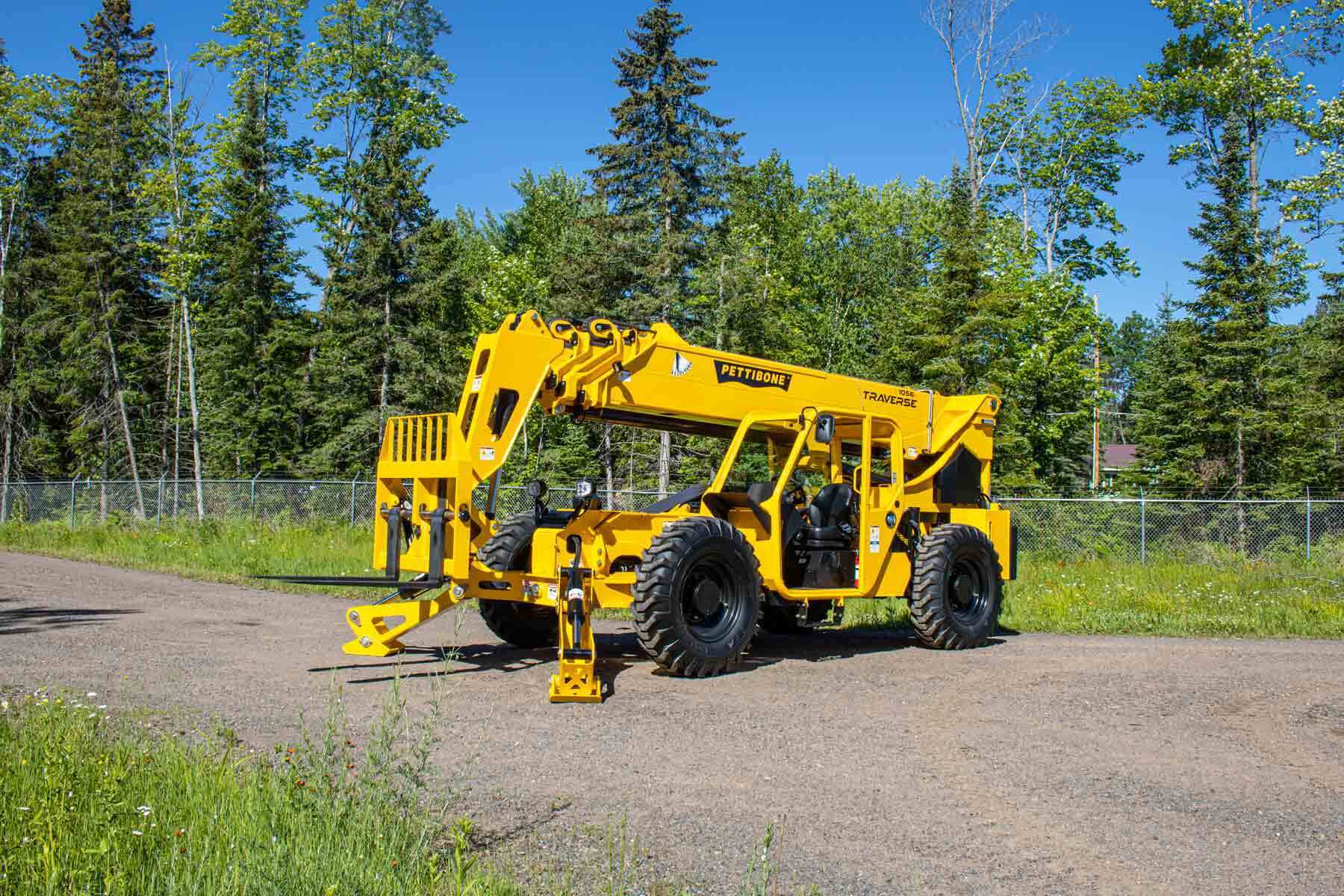

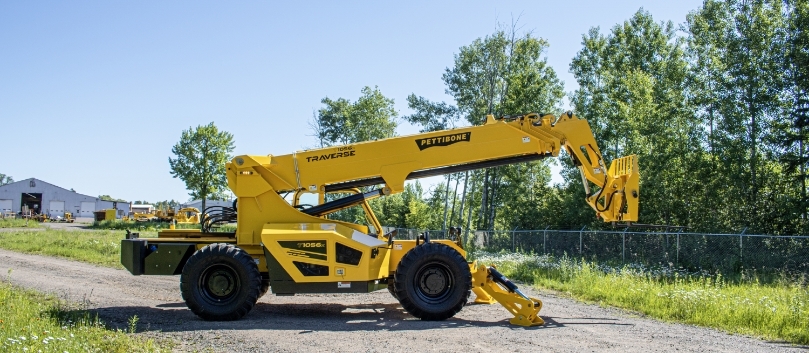

TRAVERSE T1056X Features
The Pettibone Traverse T1056X features an industry-exclusive extendable, traversing boom that moves loads by traveling horizontally. This heavy-duty material handler can easily handle a maximum load capacity of 10,000 pounds with a maximum lift height of 45 feet, 10 inches. Providing up to 70 inches of horizontal boom transfer, the 10k telehandler allows users to precisely place loads at full lift height without having to coordinate multiple boom functions.
Engine
Powered by a 120-horsepower Deutz® TCD 3.6 Tier 4 Final diesel engine with DEF and SCR aftertreatment. Side pod mounting offers easy service access while allowing excellent curbside visibility and ground clearance.
Engine
Powered by a 120-horsepower Deutz® TCD 3.6 Tier 4 Final diesel engine with DEF and SCR aftertreatment. Side pod mounting offers easy service access while allowing excellent curbside visibility and ground clearance.
Drivetrain & Axles
Drivetrain and Dana 223 Series high steer axles have been optimized to provide greater tractive effort with minimal tradeoff on top end speed. Dana VDT12000 Series transmission offers 3-speed Powershift, forward and reverse. Tight steer angle capability provides efficient turning radius. The Traverse features full-time 4-wheel-drive with limited-slip front axle differential.
Drivetrain & Axles
Drivetrain and Dana 223 Series high steer axles have been optimized to provide greater tractive effort with minimal tradeoff on top end speed. Dana VDT12000 Series transmission offers 3-speed Powershift, forward and reverse. Tight steer angle capability provides efficient turning radius. The Traverse features full-time 4-wheel-drive with limited-slip front axle differential.
Boom Construction
The 4-section boom features formed boom plates that enhance strength and reduce weight, minimizing deflection for better load control and placement accuracy. Increased boom overlap, fastener-less wear pads, and cylinder location ensure smooth operation and easy service. Bottom-mounted external extend cylinder reduces wear and improves access.
Boom Construction
The 4-section boom features formed boom plates that enhance strength and reduce weight, minimizing deflection for better load control and placement accuracy. Increased boom overlap, fastener-less wear pads, and cylinder location ensure smooth operation and easy service. Bottom-mounted external extend cylinder reduces wear and improves access.
Horizontal Traversing Boom
The Traverse provides up to 70 inches of horizontal boom transfer, the industry’s only new machine with this capability. With Traverse, the specified lift height is the same as the landing height. This stands in contrast to a traditional fixed boom pivot, where the true landing height is generally several feet less than the advertised lift height, as operators must account for withdrawing the forks out of the load with enough rearward travel for the fork tips to clear the landing zone.
Horizontal Traversing Boom
The Traverse provides up to 70 inches of horizontal boom transfer, the industry’s only new machine with this capability. With Traverse, the specified lift height is the same as the landing height. This stands in contrast to a traditional fixed boom pivot, where the true landing height is generally several feet less than the advertised lift height, as operators must account for withdrawing the forks out of the load with enough rearward travel for the fork tips to clear the landing zone.
Capacity & Reach
The T1056X has a capable 10,000-pound load capacity rating. It achieves forward reach up to 45 feet, 10 inches and a maximum lift height of 56 feet, 6 inches.
Capacity & Reach
The T1056X has a capable 10,000-pound load capacity rating. It achieves forward reach up to 45 feet, 10 inches and a maximum lift height of 56 feet, 6 inches.
Outriggers
Axle-mounted outriggers come standard on the T1056X. The machine chassis will sway independent of the outrigger system. The outriggers are positioned to provide clear visibility out to the fork tips.
Outriggers
Axle-mounted outriggers come standard on the T1056X. The machine chassis will sway independent of the outrigger system. The outriggers are positioned to provide clear visibility out to the fork tips.
Hydraulics
The Traverse’s hydraulic circuit delivers exceptional controllability, efficiency, and cycle speeds. Cylinder cushioning dampens the extending and retracting stroke ends to prevent hard, jarring stops and avoid both wear and tear and potential load spills. Twin lines are suitable for tilting and auxiliary plumbing.
Hydraulics
The Traverse’s hydraulic circuit delivers exceptional controllability, efficiency, and cycle speeds. Cylinder cushioning dampens the extending and retracting stroke ends to prevent hard, jarring stops and avoid both wear and tear and potential load spills. Twin lines are suitable for tilting and auxiliary plumbing.
Steel Tanks
The damage-resistant, all-steel fuel and hydraulic tanks provide ample fuel volume for a full day’s work at 100% load.
Steel Tanks
The damage-resistant, all-steel fuel and hydraulic tanks provide ample fuel volume for a full day’s work at 100% load.
Operator Station
The open canopy or enclosed operator cab features ergonomic seat and controls, an all-steel, water-resistant interior for easy washdown, and a split door with a lockable open position upper half. It includes a new analog/LCD gauge cluster, enhanced climate control, easily removable/replaceable flat glass, an openable rear window for improved airflow, and lockable under-seat storage.
Operator Station
The open canopy or enclosed operator cab features ergonomic seat and controls, an all-steel, water-resistant interior for easy washdown, and a split door with a lockable open position upper half. It includes a new analog/LCD gauge cluster, enhanced climate control, easily removable/replaceable flat glass, an openable rear window for improved airflow, and lockable under-seat storage.
Electrical
Split-system electrical panels ensure easier service of individual circuits and enhanced durability in addition to heavy-duty bright LED lighting and weather-sealed connections.
Electrical
Split-system electrical panels ensure easier service of individual circuits and enhanced durability in addition to heavy-duty bright LED lighting and weather-sealed connections.
Service
Easy access to filters, fluid level indicators, and the inside of the boom, along with a lockable fuel-fill and non-tensioned boom hoses, ensures convenient maintenance and long service life.
Service
Easy access to filters, fluid level indicators, and the inside of the boom, along with a lockable fuel-fill and non-tensioned boom hoses, ensures convenient maintenance and long service life.
Pettibone Traverse 1056X Options
