EXTENDO 944X Featuring several next gen optimizations, the Extendo 944X telehandler is powered by a standard
EXTENDO 944X

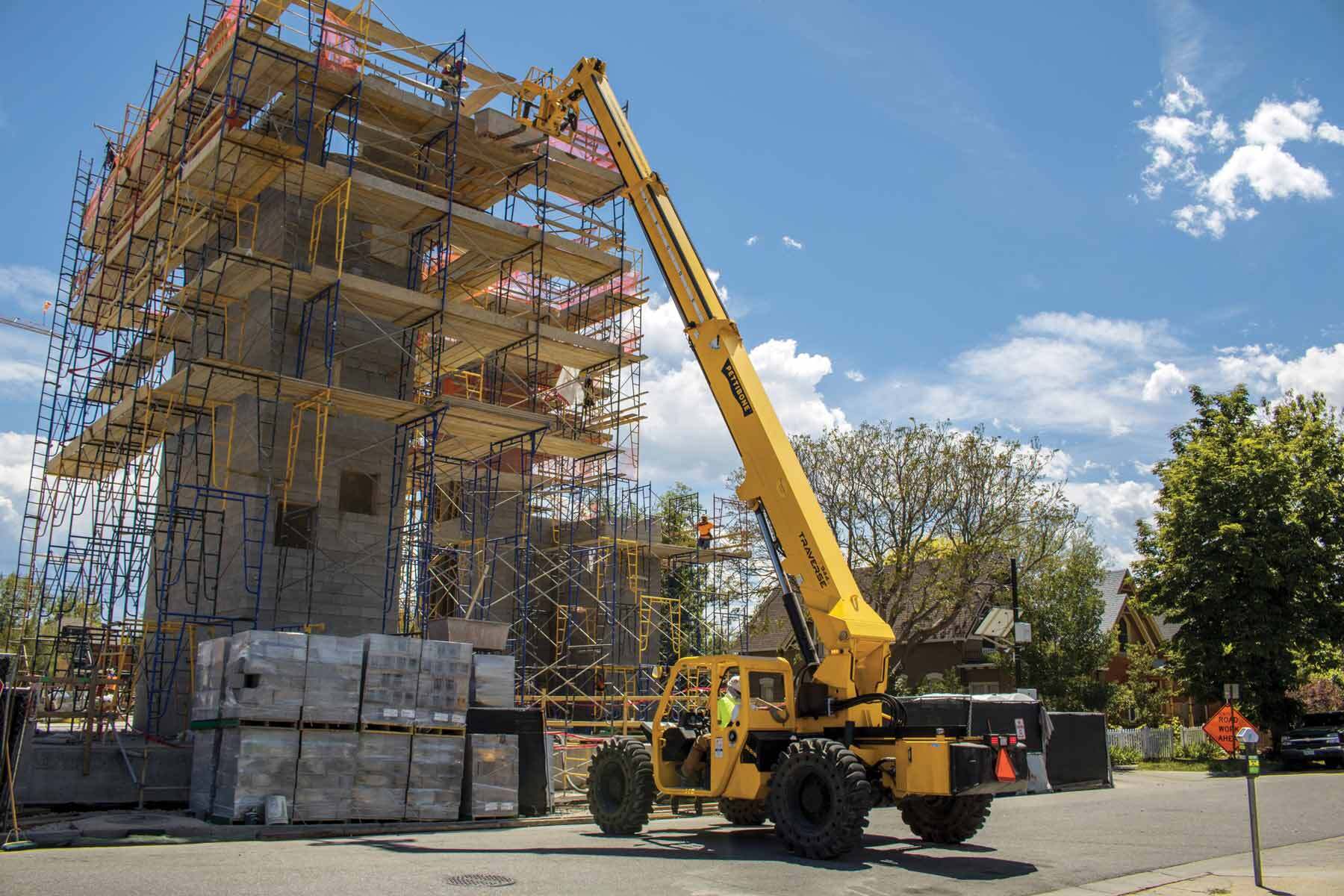

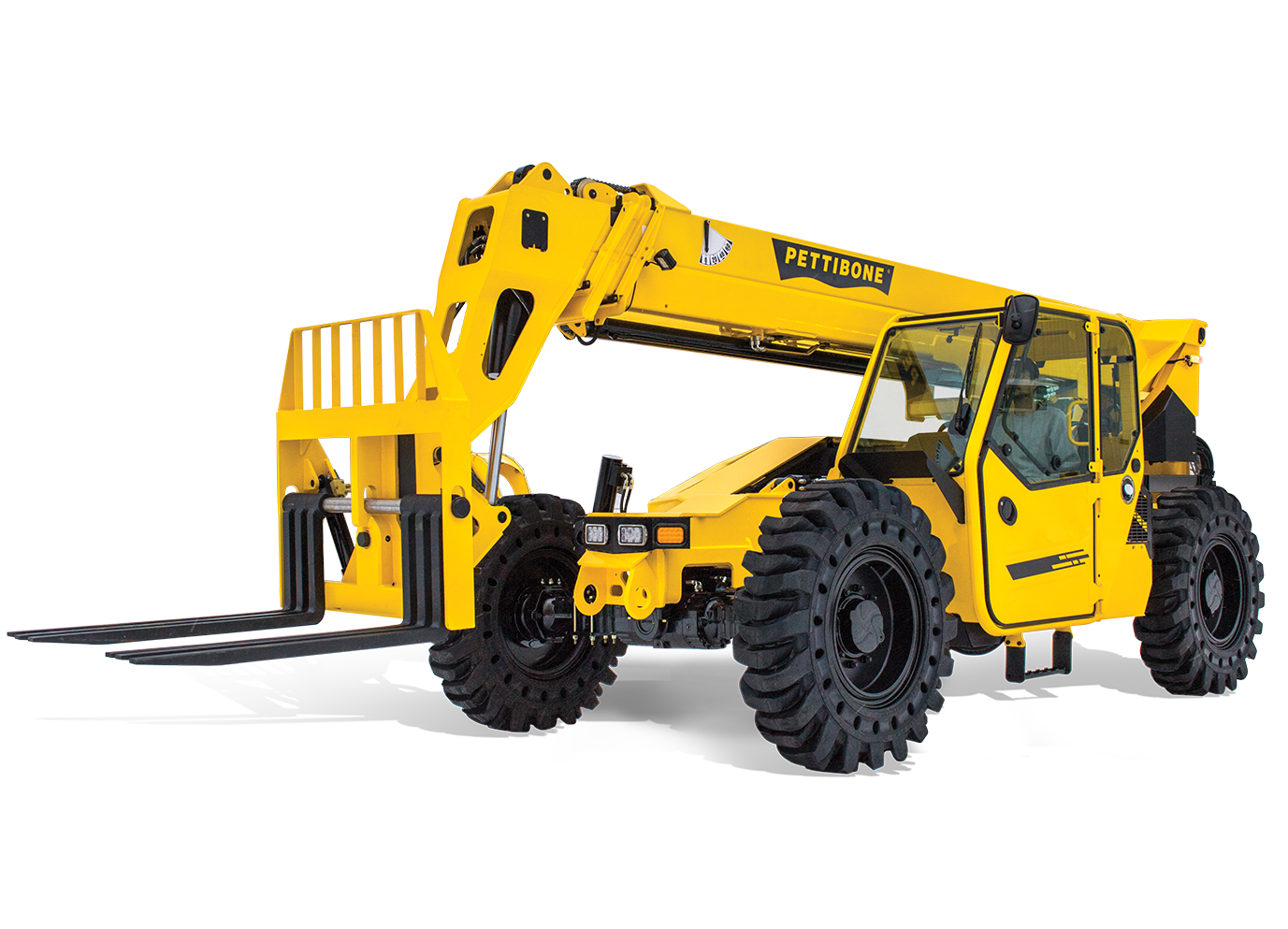

The Traverse T944X features an extendable, traversing boom that moves loads by traveling horizontally. This unique capability provides greater safety and precision when placing loads. Providing up to 70 inches of horizontal boom transfer, this unbeatable telehandler features a maximum load capacity of 9,000 pounds.
PRODUCT QUICK SPECS
- Maximum load capacity of 9,000 pounds
- Maximum lift height of 44 feet, 6 inches
- Maximum forward reach of 35 feet, 10 inches
- Maximum travel speed of 15.2 mph
- Single lift cylinder provides operators with clear sight lines for maximum visibility
- Boom’s compression tilt design allows for a smaller bore cylinder with the same tilt force
- Heavy-duty extension chains help ensure stable boom functions and longevity
Features
![Line Side Right]()
Specifications
Equipment Attatchments
Gallery
Downloads
X-Command® Telematics
A standard feature for 2 years on the Cary-Lift, X-Command provides access to the real-time status of your Pettibone machine:
- Remotely monitor equipment location and data: Engine hours, fuel usage, DEF level, battery voltage and much more.
- Identify minor mechanical issues before they become serious.
- Minimize downtime through remote diagnosis.
- Get reports and notifications via web browser or mobile app.
- Increase ROI by ensuring maintenance is up-to-date, and by eliminating certain field service calls.
- Use current, accurate machine info to plan ahead on fleet maintenance.

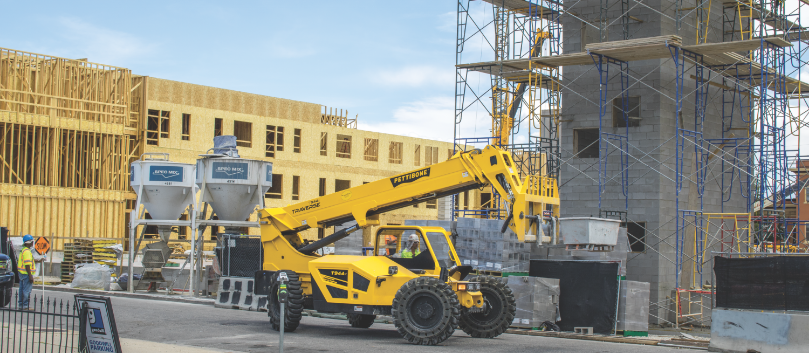

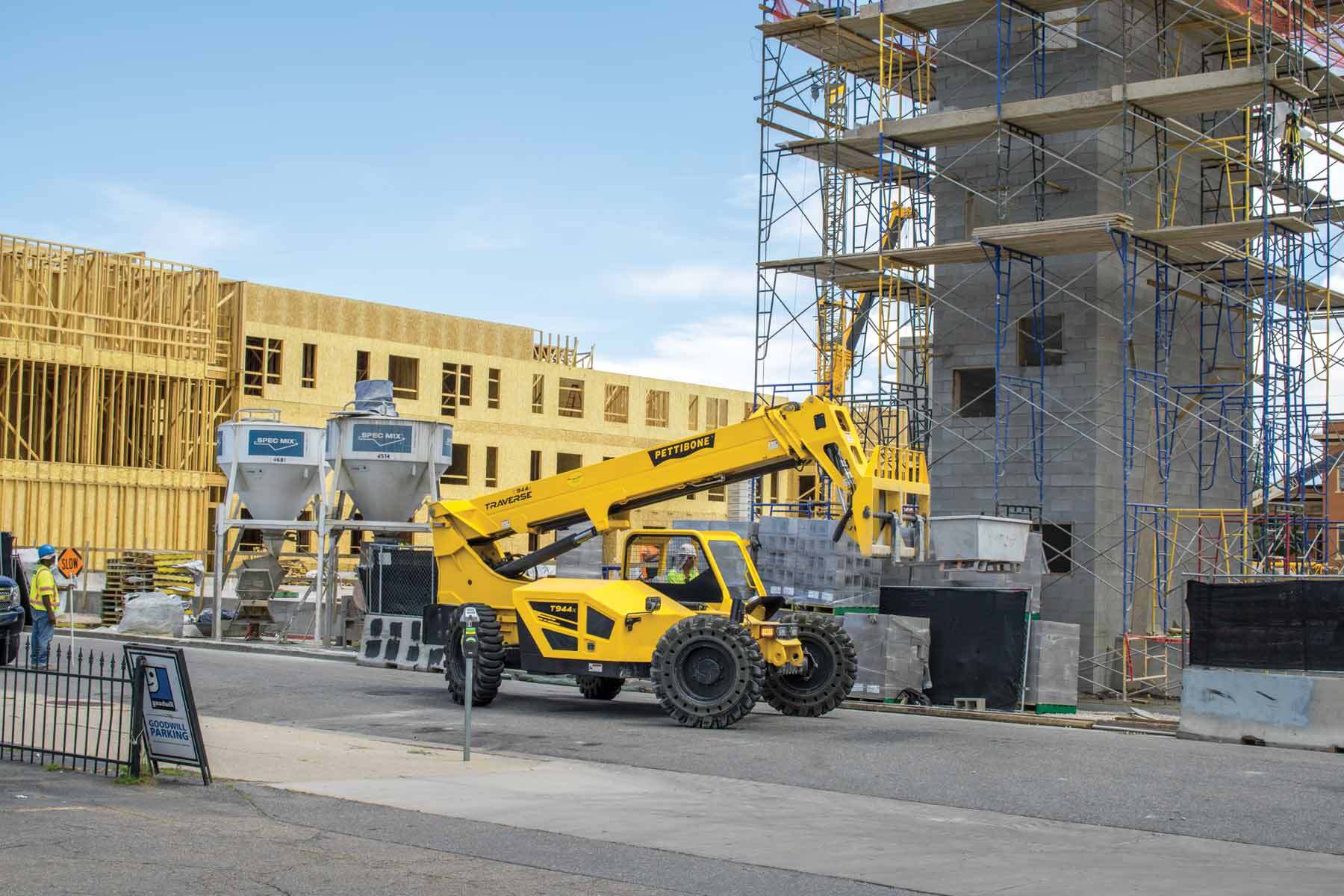

TRAVERSE T944X features

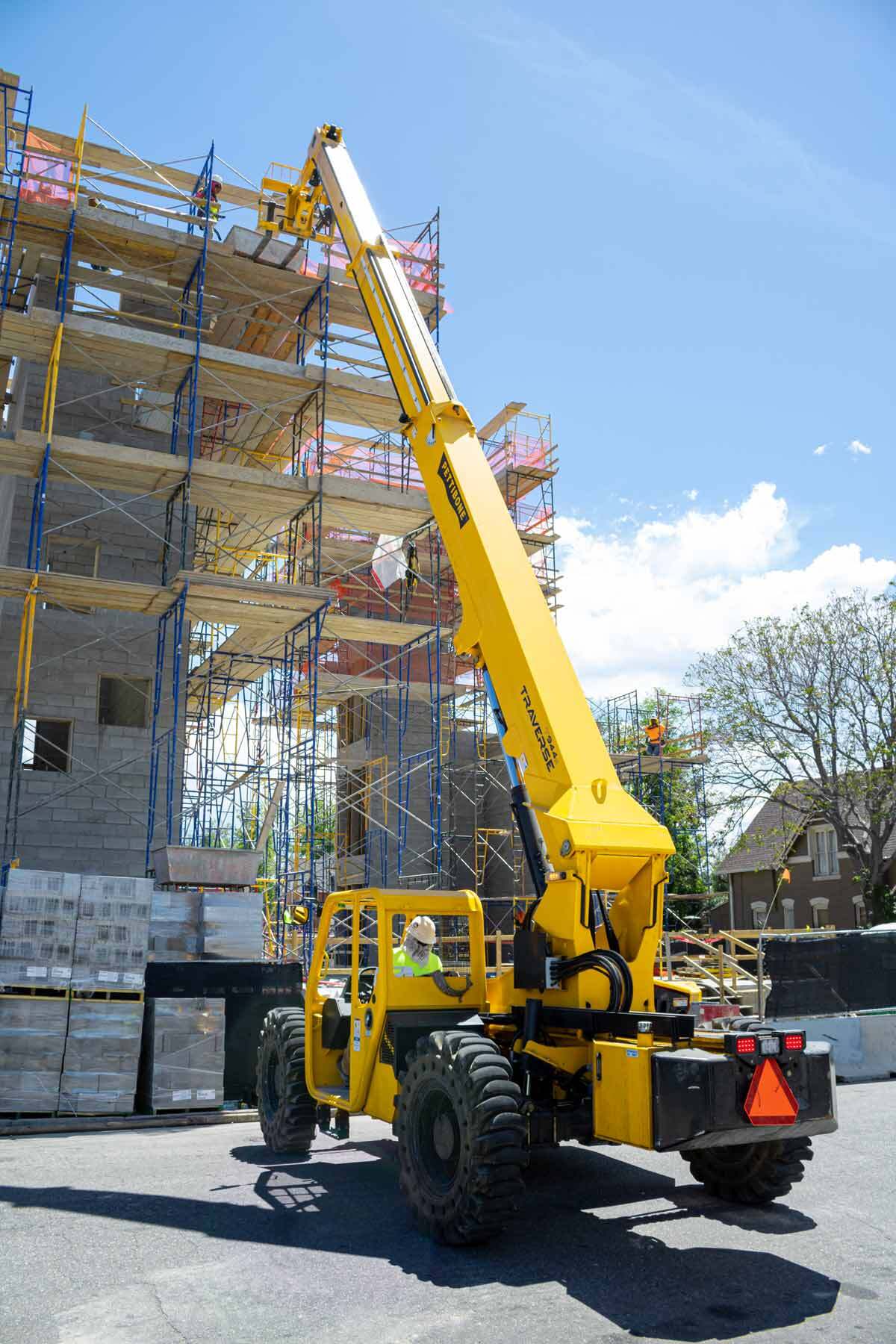

The Pettibone Traverse T944X Telehandler is the pinnacle of innovation in material handling, featuring a unique traversing boom that delivers horizontal travel capability that enables precise load placement. This reduces the need for multiple adjustments to the boom, which increases worksite productivity. The telescopic boom of this 9k telehandler achieves a substantial height of up to 44 feet and reaches up to 35 feet. This allows operators to manage materials at greater heights with enhanced control and accuracy.

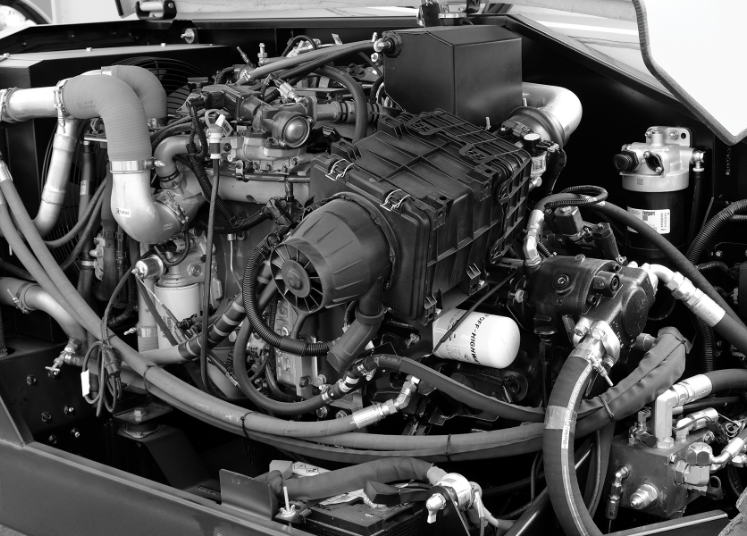

Engine

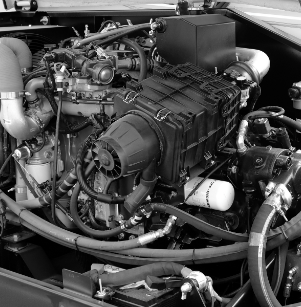

Powered by a 120-horsepower Deutz® TCD 3.6 Tier 4 Final diesel engine with DEF and SCR aftertreatment. Side pod mounting offers easy service access while allowing excellent curbside visibility and ground clearance.
Engine
Powered by a 120-horsepower Deutz® TCD 3.6 Tier 4 Final diesel engine with DEF and SCR aftertreatment. Side pod mounting offers easy service access while allowing excellent curbside visibility and ground clearance.

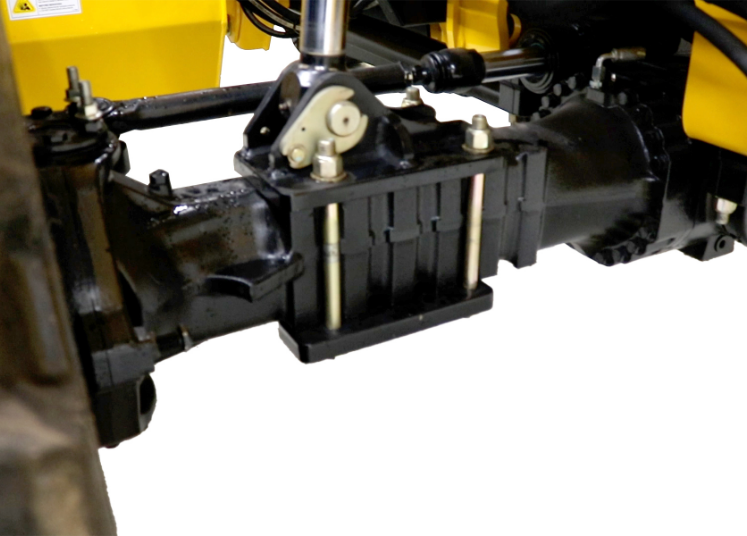

Drivetrain & Axles
Drivetrain and Dana 212 Series high steer axles have been optimized to provide greater tractive effort with minimal tradeoff on top end speed. Dana VDT12000 Series transmission offers 3-speed Powershift, forward and reverse. Tight steer angle capability provides efficient turning radius. The Traverse features full-time 4-wheel-drive with limited-slip front axle differential.
Drivetrain & Axles
Drivetrain and Dana 212 Series high steer axles have been optimized to provide greater tractive effort with minimal tradeoff on top end speed. Dana VDT12000 Series transmission offers 3-speed Powershift, forward and reverse. Tight steer angle capability provides efficient turning radius. The Traverse features full-time 4-wheel-drive with limited-slip front axle differential.

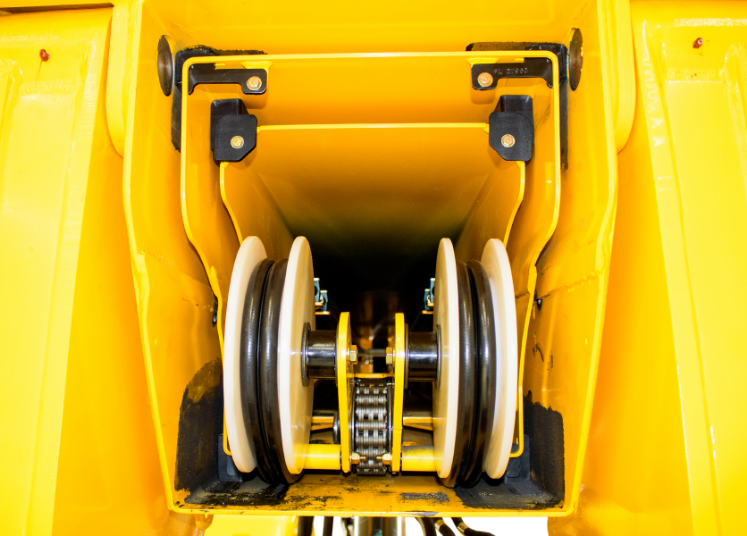

Boom Construction
Formed boom plates enhance strength and reduce weight, minimizing deflection for better load control and placement accuracy. Increased boom overlap, fastener-less wear pads, and cylinder location ensure smooth operation and easy service. Bottom-mounted external extend cylinder reduces wear and improves access.
Boom Construction
Formed boom plates enhance strength and reduce weight, minimizing deflection for better load control and placement accuracy. Increased boom overlap, fastener-less wear pads, and cylinder location ensure smooth operation and easy service. Bottom-mounted external extend cylinder reduces wear and improves access.

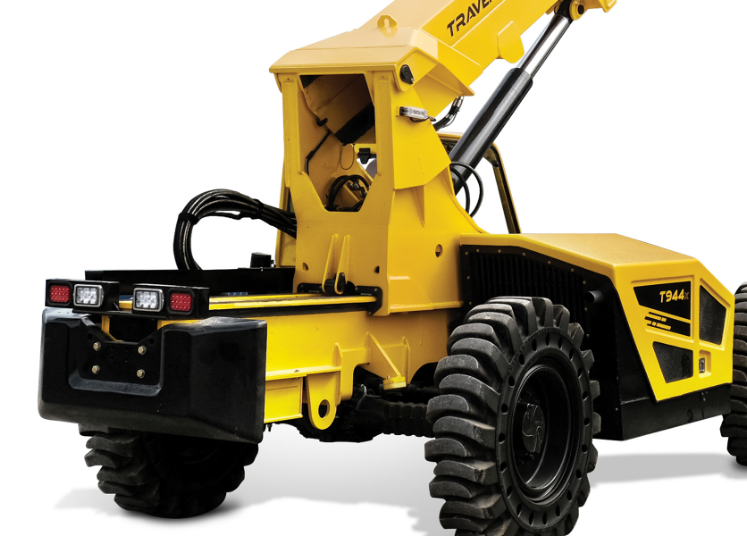

Horizontal Traversing Boom
The Traverse provides up to 70 inches of horizontal boom transfer, the industry’s only new machine with this capability. With Traverse, the specified lift height is the same as the landing height. This stands in contrast to a traditional fixed boom pivot, where the true landing height is generally several feet less than the advertised lift height, as operators must account for withdrawing the forks out of the load with enough rearward travel for the fork tips to clear the landing zone.
Horizontal Traversing Boom
The Traverse provides up to 70 inches of horizontal boom transfer, the industry’s only new machine with this capability. With Traverse, the specified lift height is the same as the landing height. This stands in contrast to a traditional fixed boom pivot, where the true landing height is generally several feet less than the advertised lift height, as operators must account for withdrawing the forks out of the load with enough rearward travel for the fork tips to clear the landing zone.

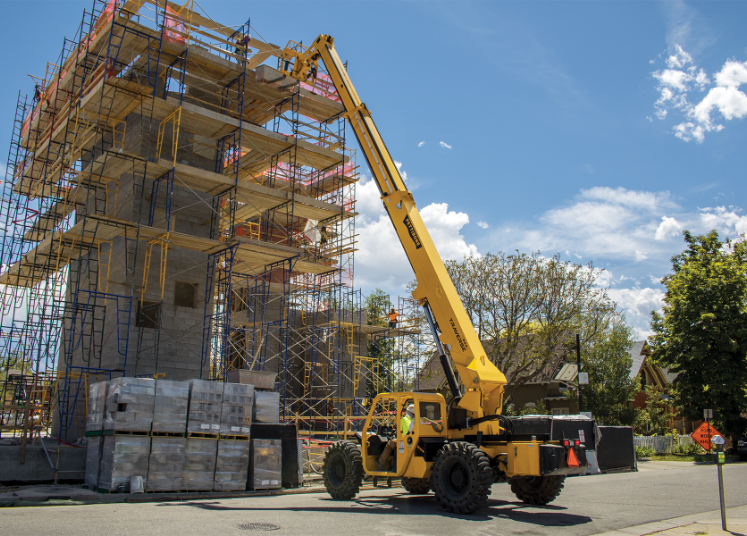

Capacity & Reach
The T944X has a capable 9,000-pound load capacity rating. It achieves forward reach up to 35 feet, 10 inches and a maximum lift height of 44 feet, 6 inches.
Capacity & Reach
The T944X has a capable 9,000-pound load capacity rating. It achieves forward reach up to 35 feet, 10 inches and a maximum lift height of 44 feet, 6 inches.

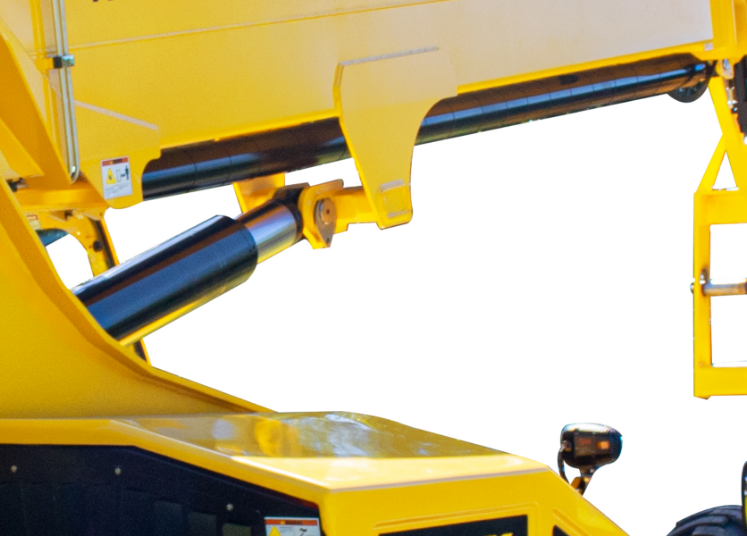

Hydraulics
The Traverse’s hydraulic circuit delivers exceptional controllability, efficiency, and cycle speeds. Cylinder cushioning dampens the extending and retracting stroke ends to prevent hard, jarring stops and avoid both wear and tear and potential load spills. Twin lines are suitable for tilting and auxiliary plumbing.
Hydraulics
The Traverse’s hydraulic circuit delivers exceptional controllability, efficiency, and cycle speeds. Cylinder cushioning dampens the extending and retracting stroke ends to prevent hard, jarring stops and avoid both wear and tear and potential load spills. Twin lines are suitable for tilting and auxiliary plumbing.

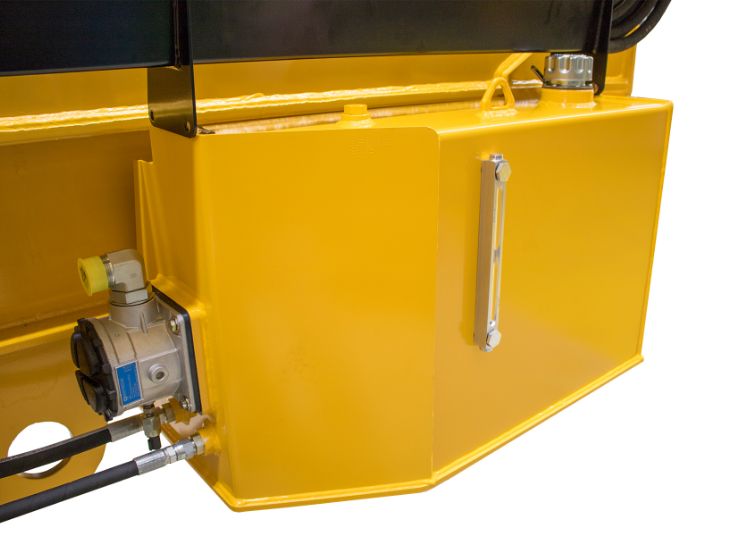

Steel Tanks
The damage-resistant, all-steel fuel and hydraulic tanks provide ample fuel volume for a full day’s work at 100% load.
Steel Tanks
The damage-resistant, all-steel fuel and hydraulic tanks provide ample fuel volume for a full day’s work at 100% load.

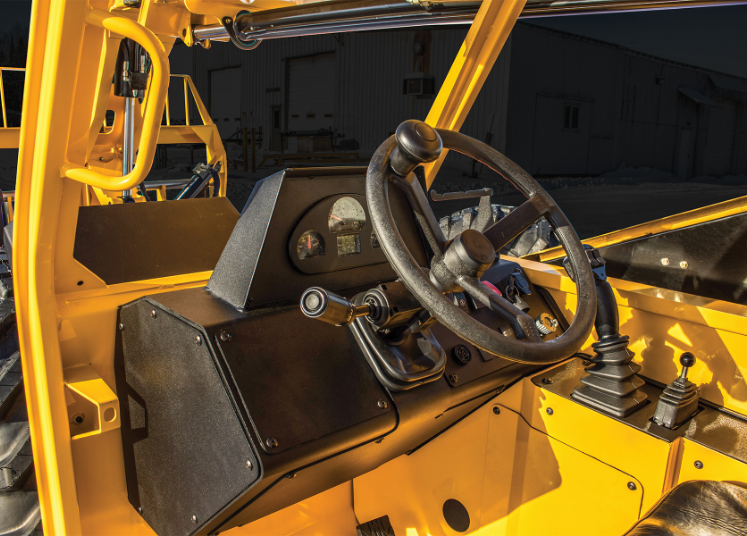

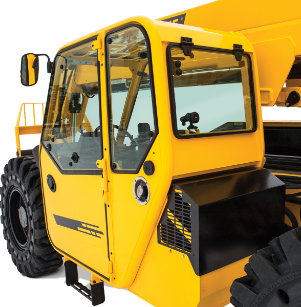

Operator Station

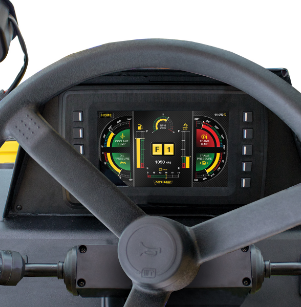

The open canopy or enclosed operator cab features ergonomic seat and controls, an all-steel, water-resistant interior for easy washdown, and a split door with a lockable open position upper half. It includes a new analog/LCD gauge cluster, enhanced climate control, easily removable/replaceable flat glass, an openable rear window for improved airflow, and lockable under-seat storage.
Operator Station
The open canopy or enclosed operator cab features ergonomic seat and controls, an all-steel, water-resistant interior for easy washdown, and a split door with a lockable open position upper half. It includes a new analog/LCD gauge cluster, enhanced climate control, easily removable/replaceable flat glass, an openable rear window for improved airflow, and lockable under-seat storage.
Electrical

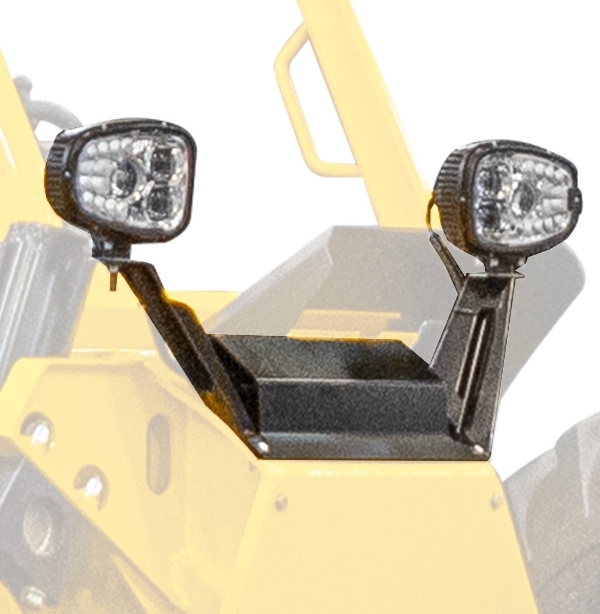

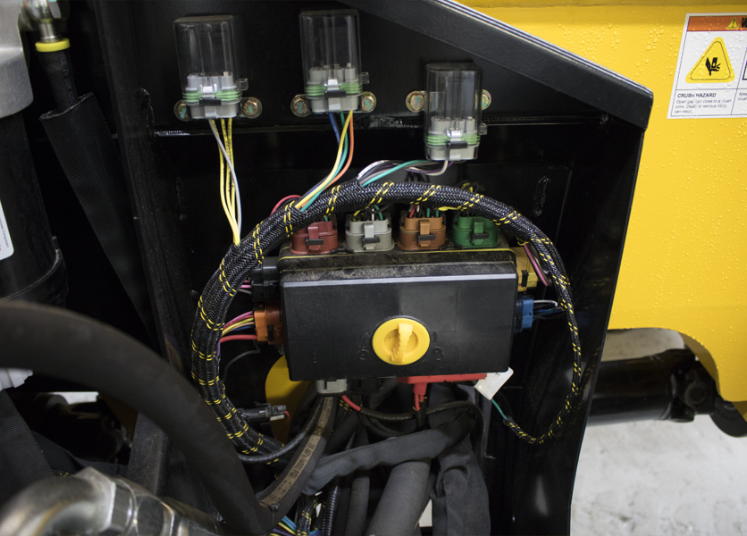

Split-system electrical panels ensure easier service of individual circuits and enhanced durability in addition to heavy-duty bright LED lighting and weather-sealed connections.
Electrical
Split-system electrical panels ensure easier service of individual circuits and enhanced durability in addition to heavy-duty bright LED lighting and weather-sealed connections.
Service

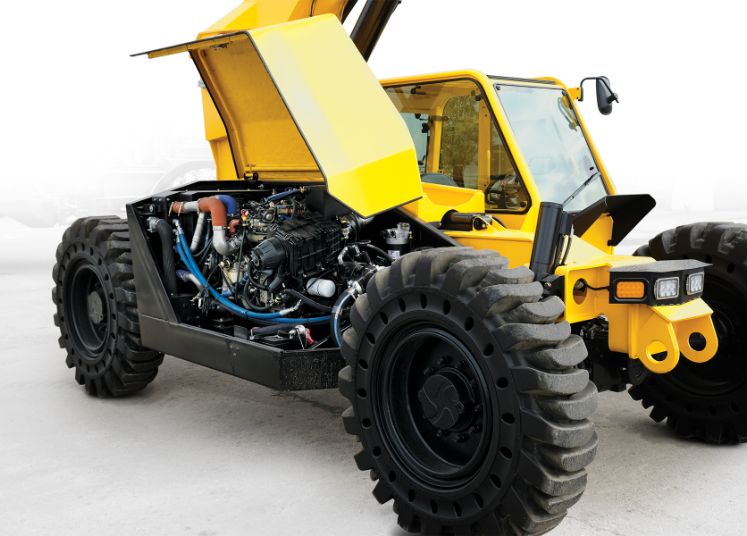

Easy access to filters, fluid level indicators, and the inside of the boom, along with a lockable fuel-fill and non-tensioned boom hoses, ensures convenient maintenance and long service life.
Service
Easy access to filters, fluid level indicators, and the inside of the boom, along with a lockable fuel-fill and non-tensioned boom hoses, ensures convenient maintenance and long service life.
Pettibone Traverse T944X Options
