EXTENDO 944X
EXTENDO 944X Featuring several next gen optimizations, the Extendo 944X telehandler is powered by a standard
EXTENDO 1256X
Featuring several next gen optimizations, the Extendo 944X telehandler is powered by a standard 74-horsepower engine and features tried-and-true Pettibone hydraulics
PRODUCT QUICK SPECS
- Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.aliqua.
- Lorem ipsum dolor sit amet, consectetur.
- Lorem ipsum dolor sit amet, consectetur.
- Lorem ipsum dolor sit amet, consectetur.
- Lorem ipsum dolor sit amet, consectetur.
- Lorem ipsum dolor sit amet, consectetur.
Features
![Line Side Right]()
Specifications
Equipment Attatchments
Gallery
Downloads
X-Command® Telematics
A standard feature for 2 years on the Extendo, X-Command provides access to the real-time status of your Pettibone machine:
- Remotely monitor equipment location and data: Engine hours, fuel usage, DEF level, battery voltage and much more.
- Identify minor mechanical issues before they become serious.
- Minimize downtime through remote diagnosis.
- Get reports and notifications via web browser or mobile app.
- Increase ROI by ensuring maintenance is up-to-date, and by eliminating certain field service calls.
- Use current, accurate machine info to plan ahead on fleet maintenance.

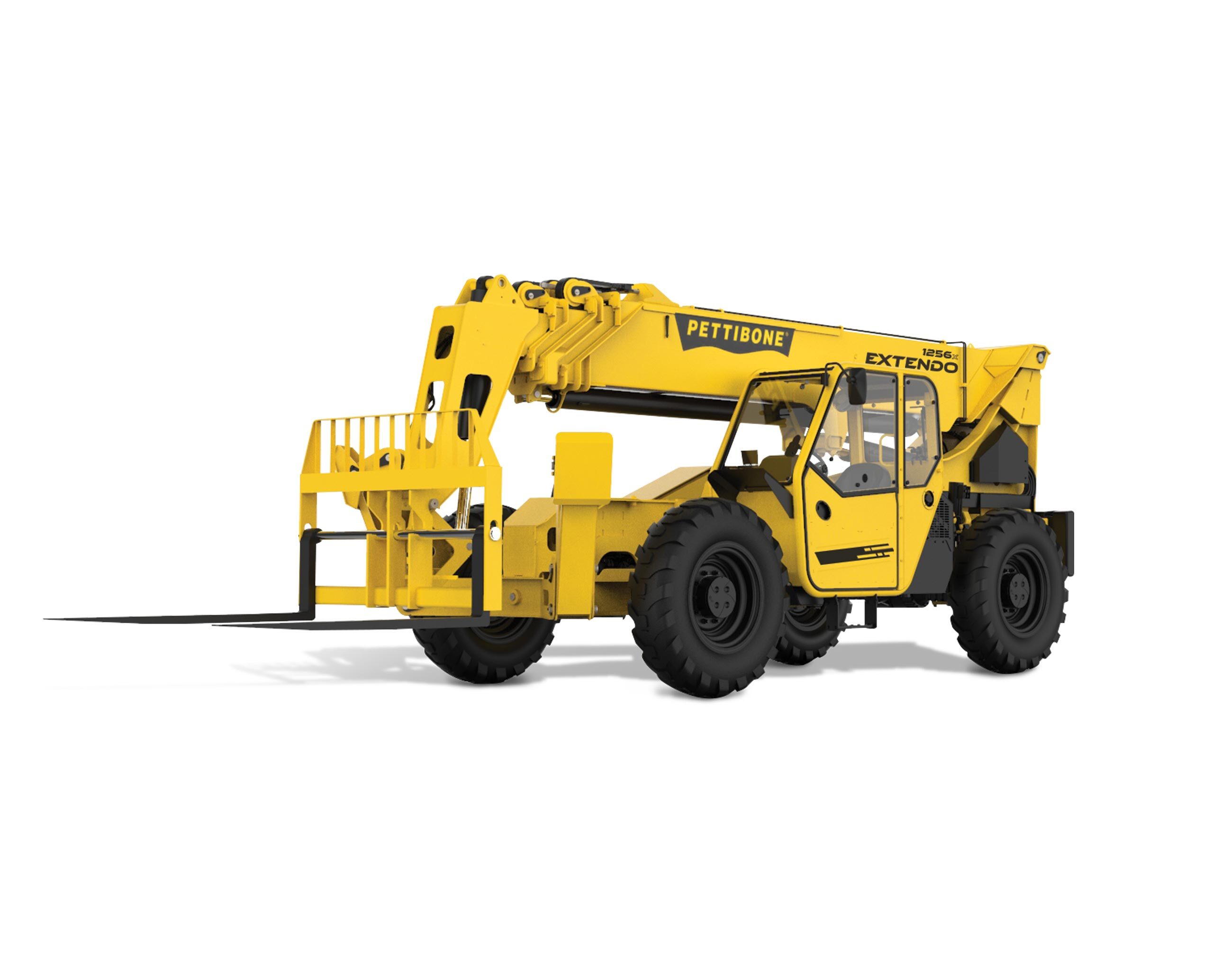

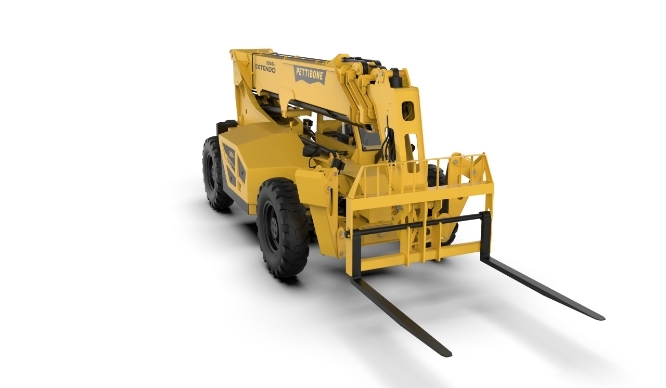

extendo 1256X features
The Extendo 1256X is the pinnacle of Pettibone-level performance as it offers up to 12,000 pounds of lift capacity and a maximum lift height of 56 feet, 6 inches. This significant reach capability allows operators to reach higher levels with their materials, increasing productivity and performance on the jobsite. Featuring a 4-section boom, standard outriggers, and user-friendly hydraulic controls, the best-in-class Extendo 1256X is the ultimate telehandler for tough jobsites.
Engine
Powered by a 120-horsepower Deutz® TCD 3.6 Tier 4 Final diesel engine with DEF and SCR aftertreatment. Side pod mounting offers easy service access while allowing excellent curbside visibility and ground clearance.
Engine
Powered by a 120-horsepower Deutz® TCD 3.6 Tier 4 Final diesel engine with DEF and SCR aftertreatment. Side pod mounting offers easy service access while allowing excellent curbside visibility and ground clearance.
Drivetrain & Axles
Drivetrain and Dana 223 Series high steer axles have been optimized to provide greater tractive effort with minimal tradeoff on top end speed. Dana VDT12000 Series transmission offers 3-speed Powershift, forward and reverse. Tight steer angle capability provides efficient turning radius. The Extendo features full-time 4-wheel-drive with limited-slip front axle differential.
Drivetrain & Axles
Drivetrain and Dana 223 Series high steer axles have been optimized to provide greater tractive effort with minimal tradeoff on top end speed. Dana VDT12000 Series transmission offers 3-speed Powershift, forward and reverse. Tight steer angle capability provides efficient turning radius. The Extendo features full-time 4-wheel-drive with limited-slip front axle differential.
boom construction
Formed boom plates enhance strength and reduce weight, minimizing deflection for better load control and placement accuracy. Increased boom overlap, fastener-less wear pads, and cylinder location ensure smooth operation and easy service. Bottom-mounted external extend cylinder reduces wear and improves access.
Boom Construction
Formed boom plates enhance strength and reduce weight, minimizing deflection for better load control and placement accuracy. Increased boom overlap, fastener-less wear pads, and cylinder location ensure smooth operation and easy service. Bottom-mounted external extend cylinder reduces wear and improves access.
Capacity & Reach
The 1256X has a capable 12,000-pound load capacity rating. It achieves forward reach up to 40 feet and a maximum lift height of 56 feet, 6 inches.
Capacity & Reach
The 1256X has a capable 12,000-pound load capacity rating. It achieves forward reach up to 40 feet and a maximum lift height of 56 feet, 6 inches.

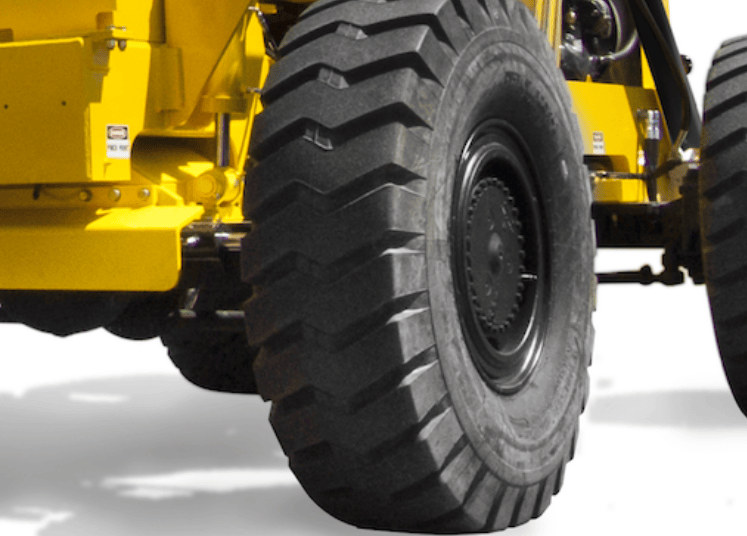

Outriggers
Axle-mounted outriggers come standard on the 1256X. The machine chassis will sway independent of the outrigger system. The outriggers are positioned to provide clear visibility out to the fork tips.
Outriggers
Axle-mounted outriggers come standard on the 1256X. The machine chassis will sway independent of the outrigger system. The outriggers are positioned to provide clear visibility out to the fork tips.
Hydraulics
The Extendo’s hydraulic circuit delivers exceptional controllability, efficiency, and cycle speeds. Cylinder cushioning dampens the extending and retracting stroke ends to prevent hard, jarring stops and avoid both wear and tear and potential load spills. Twin lines are suitable for tilting and auxiliary plumbing.
Hydraulics
The Extendo’s hydraulic circuit delivers exceptional controllability, efficiency, and cycle speeds. Cylinder cushioning dampens the extending and retracting stroke ends to prevent hard, jarring stops and avoid both wear and tear and potential load spills. Twin lines are suitable for tilting and auxiliary plumbing.
Steel Tanks
The damage-resistant, all-steel fuel and hydraulic tanks provide ample fuel volume for a full day’s work at 100% load.
Steel Tanks
The damage-resistant, all-steel fuel and hydraulic tanks provide ample fuel volume for a full day’s work at 100% load.
Operator Station
The open canopy or enclosed operator cab features ergonomic seat and controls, an all-steel, water-resistant interior for easy washdown, and a split door with a lockable open position upper half. It includes a new analog/LCD gauge cluster, enhanced climate control, easily removable/replaceable flat glass, an openable rear window for improved airflow, and lockable under-seat storage.
Operator Station
The open canopy or enclosed operator cab features ergonomic seat and controls, an all-steel, water-resistant interior for easy washdown, and a split door with a lockable open position upper half. It includes a new analog/LCD gauge cluster, enhanced climate control, easily removable/replaceable flat glass, an openable rear window for improved airflow, and lockable under-seat storage.
Electrical
Split-system electrical panels ensure easier service of individual circuits and enhanced durability in addition to heavy-duty bright LED lighting and weather-sealed connections.
Electrical
Split-system electrical panels ensure easier service of individual circuits and enhanced durability in addition to heavy-duty bright LED lighting and weather-sealed connections.
Service
Easy access to filters, fluid level indicators, and the inside of the boom, along with a lockable fuel-fill and non-tensioned boom hoses, ensures convenient maintenance and long service life.
Service
Easy access to filters, fluid level indicators, and the inside of the boom, along with a lockable fuel-fill and non-tensioned boom hoses, ensures convenient maintenance and long service life.
Pettibone Extendo 1256x Options
