EXTENDO 944X
EXTENDO 944X Featuring several next gen optimizations, the Extendo 944X telehandler is powered by a standard
CARY-LIFT 204i
Featuring several next gen optimizations, the Extendo 944X telehandler is powered by a standard 74-horsepower engine and features tried-and-true Pettibone hydraulics
PRODUCT QUICK SPECS
- Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.aliqua.
- Lorem ipsum dolor sit amet, consectetur.
- Lorem ipsum dolor sit amet, consectetur.
- Lorem ipsum dolor sit amet, consectetur.
- Lorem ipsum dolor sit amet, consectetur.
- Lorem ipsum dolor sit amet, consectetur.
Features
![Line Side Right]()
Specifications
Equipment Attatchments
Gallery
Downloads
X-Command® Telematics
A standard feature for 2 years on the Cary-Lift, X-Command provides access to the real-time status of your Pettibone machine:
- Remotely monitor equipment location and data: Engine hours, fuel usage, DEF level, battery voltage and much more.
- Identify minor mechanical issues before they become serious.
- Minimize downtime through remote diagnosis.
- Get reports and notifications via web browser or mobile app.
- Increase ROI by ensuring maintenance is up-to-date, and by eliminating certain field service calls.
- Use current, accurate machine info to plan ahead on fleet maintenance.

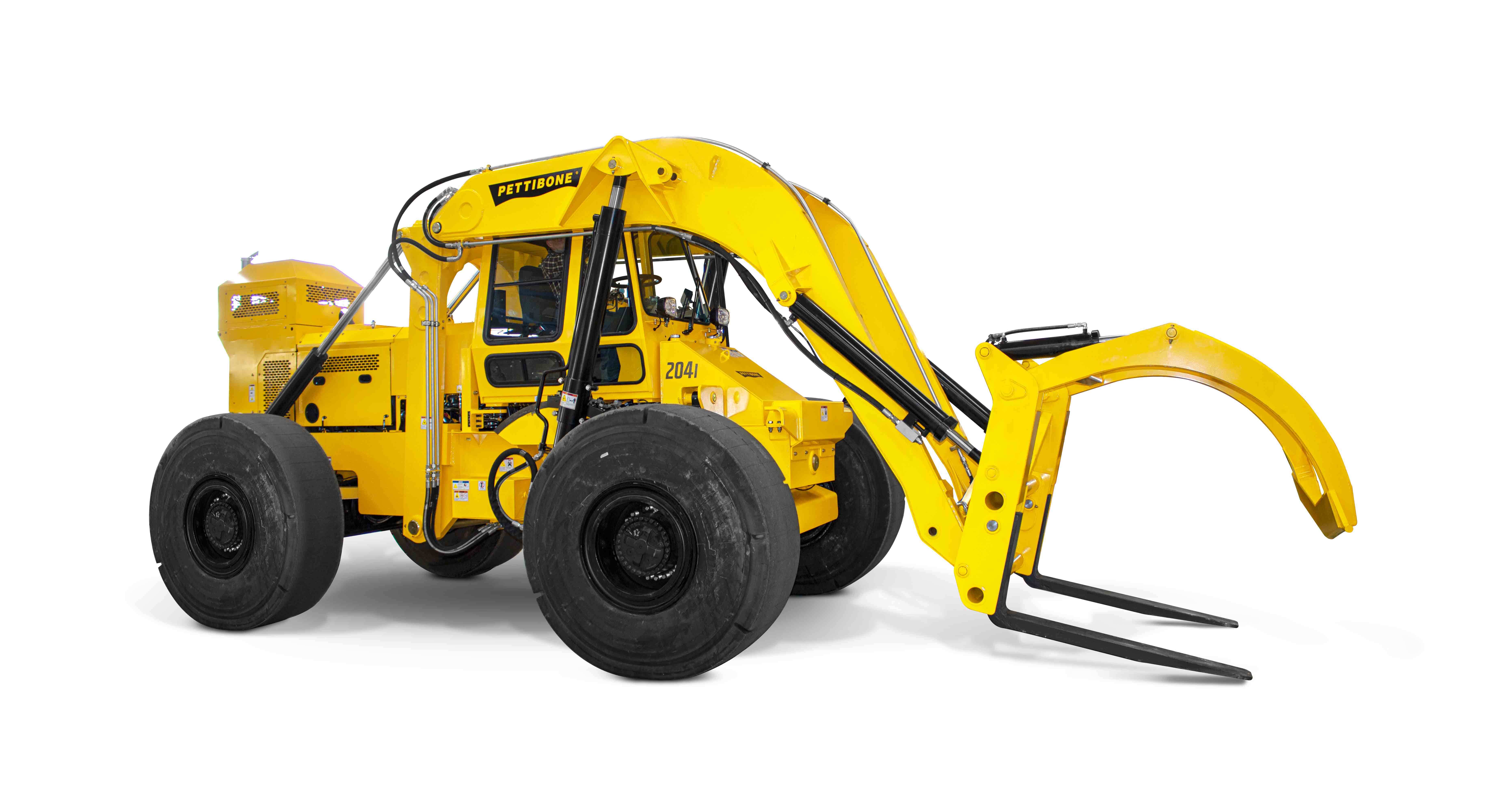

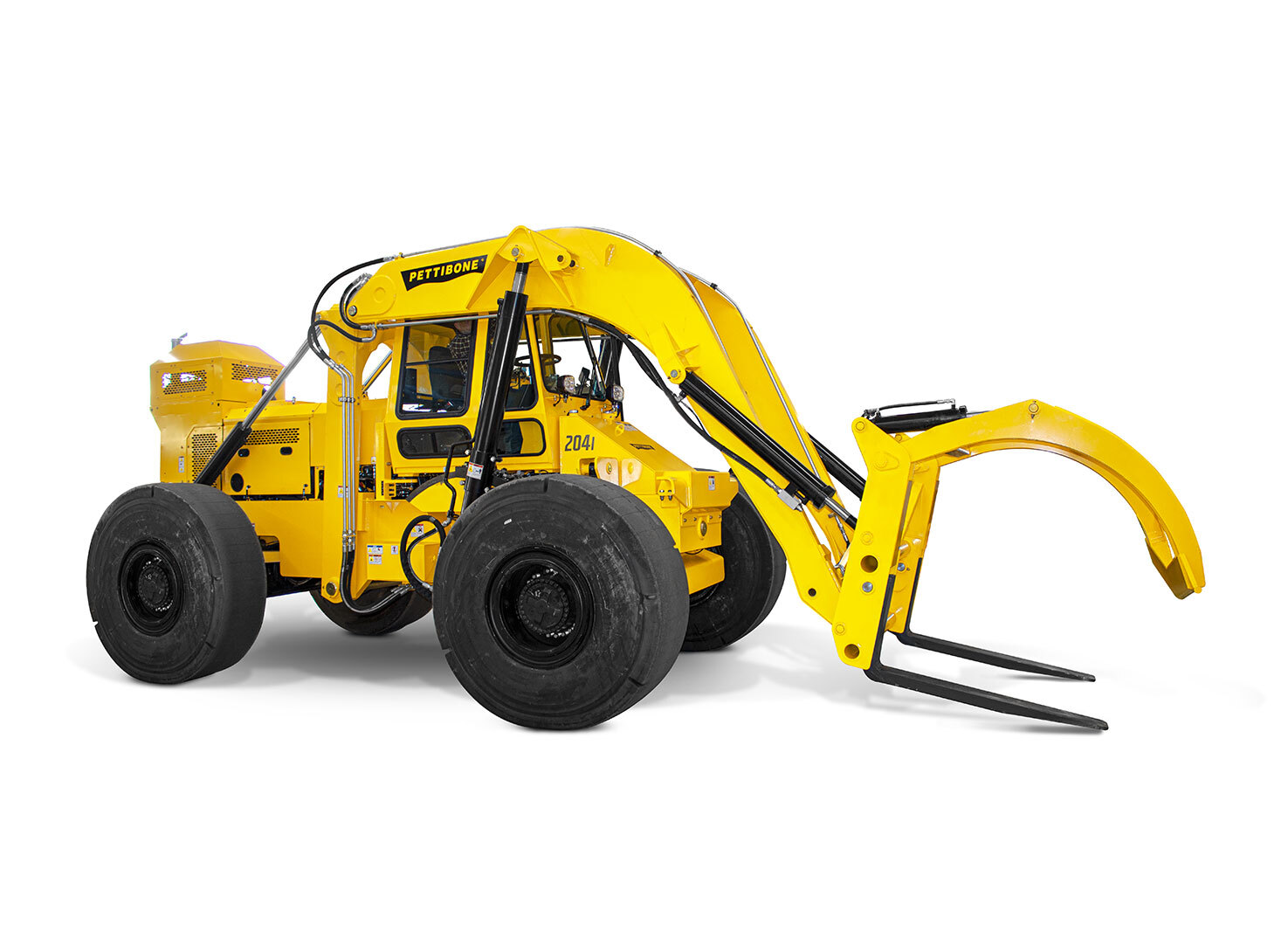

CARY-LIFT 204i features
Designed to provide full frontal visibility, the best-in-class Pettibone Cary-Lift 204i allows operators to lift, place, and transport loads with maximum efficiency and safety. A heavy-duty solid steel frame keeps loads stable in full turns. Propelled with joystick controls and designed with other industry-defining features for intuitive operation, the 204i provides 90-degree fork tilt down, forward reach, sway control, and side shift for superior material handling.
Solid Frame
The 204i has a heavy-duty, solid steel frame design that allows it to take full loads into sharp turns without sacrificing load capacity or stability.
Solid Frame
The 204i has a heavy-duty, solid steel frame design that allows it to take full loads into sharp turns without sacrificing load capacity or stability.
Steering
Excellent maneuverability thanks to 4-wheel drive with 2-wheel, 4-wheel, and crab hydraulic power steering modes.
Steering
Excellent maneuverability thanks to 4-wheel drive with 2-wheel, 4-wheel, and crab hydraulic power steering modes.
Joystick Controls
Dual joysticks provide intuitive control of the hydraulics for lifting, tilting, and reaching simultaneously.
Joystick Controls
Dual joysticks provide intuitive control of the hydraulics for lifting, tilting, and reaching simultaneously.
Hydraulic frame sway
Hydraulic frame sway control and side shift stabilize loads by leveling the lifting frame when driving on uneven ground. The sway cylinder moves 7 degrees both right and left of center.
Hydraulic frame sway
Hydraulic frame sway control and side shift stabilize loads by leveling the lifting frame when driving on uneven ground. The sway cylinder moves 7 degrees both right and left of center.
overhead lift arm
The unique overhead lift arm design gives the operator full front visibility when lifting, placing, or transporting loads. The arms are mounted behind the cab to avoid obstructing the forward view.
overhead lift arm
The unique overhead lift arm design gives the operator full front visibility when lifting, placing, or transporting loads. The arms are mounted behind the cab to avoid obstructing the forward view.
Reach
The 204i is capable of reaching the forks out an extra 4 feet without having to reposition the machine. It offers a maximum lift height of 16 feet.
Reach
The 204i is capable of reaching the forks out an extra 4 feet without having to reposition the machine. It offers a maximum lift height of 16 feet.
90° Fork tilt down
Cary-Lift forks are capable of tilting down 90 degrees for specialized lifting tasks.
90° Fork tilt down
Cary-Lift forks are capable of tilting down 90 degrees for specialized lifting tasks.
Camera and Windows
Standard rear-view camera and large tinted safety glass windows contribute to better visibility.
Camera and Windows
Standard rear-view camera and large tinted safety glass windows contribute to better visibility.
Operator Cab
A sliding door offers quick access to the comfortable, air-conditioned cab, which includes a tilt/telescoping steering column and swiveling, adjustable suspension seat with padded armrests and lumbar support.
Operator Cab
A sliding door offers quick access to the comfortable, air-conditioned cab, which includes a tilt/telescoping steering column and swiveling, adjustable suspension seat with padded armrests and lumbar support.
Engine
The 204i is powered by a 200-HP Cummins QSB6.7 Tier 4 Final diesel engine with DOC and SCR aftertreatment. The unit includes an engine-driven fan cooling package and engine block heater as standard equipment.
Engine
The 204i is powered by a 200-HP Cummins QSB6.7 Tier 4 Final diesel engine with DOC and SCR aftertreatment. The unit includes an engine-driven fan cooling package and engine block heater as standard equipment.
WHEEL BASE
A wheel base of just 12 feet provides a tight turning radius of 21 feet, 6 inches.
WHEEL BASE
A wheel base of just 12 feet provides a tight turning radius of 21 feet, 6 inches.
Pettibone Cary-Lift 204i Options
